教程

本教程介绍文档对象模型(DOM)API。

概览 所示,你可以将 JSON 解析为 DOM,然后轻松地查询和修改 DOM,最后将其转换回 JSON。

Value 与 Document

每个 JSON 值存储为 Value 类,而 Document 类表示整个 DOM,存储 DOM 树的根 Value。Merak 的所有公共类型和函数都在 merak::json 命名空间中。

查询值

本节使用 example/tutorial/tutorial.cpp 中的代码示例。

假设我们将 JSON 存储在 C 风格字符串中(const char* json):

{
"hello": "world",
"t": true ,
"f": false,
"n": null,
"i": 123,
"pi": 3.1416,
"a": [1, 2, 3, 4]
}

将其解析为 Document

#include "merak/json/document.h"

using namespace merak::json;

// ...
Document document;
document.Parse(json);

现在 JSON 已解析到 document 中,形成一个 DOM 树

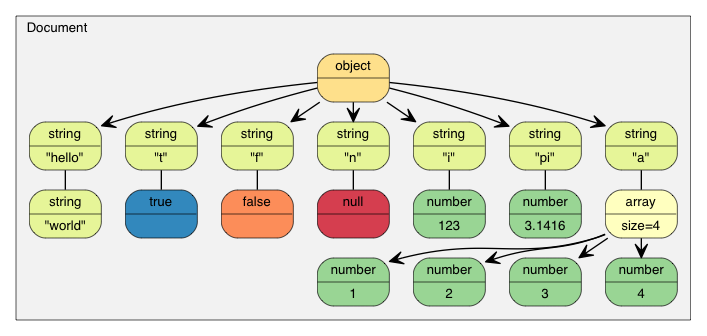

DOM 树

根据 RFC 7159 的更新,有效 JSON 文件的根可以是任意类型的 JSON 值(早期 RFC 4627 仅允许 Object 或 Array 作为根)。在上例中,根是一个 Object:

assert(document.IsObject());

检查根 Object 是否包含 "hello" 成员。由于 Value 可以包含不同类型的值,需要验证类型并使用相应 API 获取值。在此例中,"hello" 对应 JSON 字符串:

assert(document.HasMember("hello"));
assert(document["hello"].IsString());
printf("hello = %s\n", document["hello"].GetString());

输出:

world

JSON 的 True/False 值表示为 bool

assert(document["t"].IsBool());
printf("t = %s\n", document["t"].GetBool() ? "true" : "false");

输出:

true

JSON Null 值可使用 IsNull() 查询:

printf("n = %s\n", document["n"].IsNull() ? "null" : "?");

输出:

null

JSON Number 类型表示所有数字值。但 C++ 需要更具体的类型:

assert(document["i"].IsNumber());

// 此时 IsUint()/IsInt64()/IsUint64() 也返回 true
assert(document["i"].IsInt());
printf("i = %d\n", document["i"].GetInt());
// 或者使用 (int)document["i"]

assert(document["pi"].IsNumber());
assert(document["pi"].IsDouble());
printf("pi = %g\n", document["pi"].GetDouble());

输出:

i = 123
pi = 3.1416

JSON Array 包含多个元素:

// 连续访问使用引用更方便且高效
const Value& a = document["a"];
assert(a.IsArray());
for (SizeType i = 0; i < a.Size(); i++) // 使用 SizeType 而非 size_t
printf("a[%d] = %d\n", i, a[i].GetInt());

输出:

a[0] = 1
a[1] = 2
a[2] = 3
a[3] = 4

注意 Merak 不会自动进行 JSON 类型转换。例如,对 String Value 调用 GetInt() 是非法的——在调试模式下会触发断言,在发布模式下行为未定义。

下面将详细说明如何查询各类型。

查询数组

默认情况下,SizeTypeunsigned 的 typedef。在大多数系统中,Array 最多可存储 2^32-1 个元素。

可以使用整数下标访问元素,如 a[0]a[1]a[2]

类似 std::vector,数组还可以使用迭代器遍历(除了下标):

for (Value::ConstValueIterator itr = a.Begin(); itr != a.End(); ++itr)
printf("%d ", itr->GetInt());

常用查询函数:

  • SizeType Capacity() const
  • bool Empty() const

范围 for 循环(v1.1.0 新增)

使用 C++11 特性时,可以用范围 for 遍历 Array 所有元素:

for (auto& v : a.GetArray())
printf("%d ", v.GetInt());

查询对象

类似于数组,可使用迭代器访问 Object 的所有成员:

static const char* kTypeNames[] =
{ "Null", "False", "True", "Object", "Array", "String", "Number" };

for (Value::ConstMemberIterator itr = document.MemberBegin();
itr != document.MemberEnd(); ++itr)
{
printf("Type of member %s is %s\n",
itr->name.GetString(), kTypeNames[itr->value.GetType()]);
}

输出:

Type of member hello is String
Type of member t is True
Type of member f is False
Type of member n is Null
Type of member i is Number
Type of member pi is Number
Type of member a is Array

注意,如果成员不存在,operator[](const char*) 会触发断言失败。

如果不确定成员是否存在,先用 HasMember() 检查再调用 operator[](const char*)。但这会导致两次查找。更好的方法是使用 FindMember(),它在一次操作中检查存在性并返回 Value:

Value::ConstMemberIterator itr = document.FindMember("hello");
if (itr != document.MemberEnd())
printf("%s\n", itr->value.GetString());

范围 for 循环(v1.1.0 新增)

使用 C++11 特性时,可以用范围 for 遍历 Object 所有成员:

for (auto& m : document.GetObject())
printf("Type of member %s is %s\n",
m.name.GetString(), kTypeNames[m.value.GetType()]);

查询数字

JSON 仅提供一种数字类型——Number(可以是整数或实数)。RFC 4627 指定数字的范围由解析器决定。

由于 C++ 提供多种整数和浮点类型,DOM 尝试提供最宽范围和最佳性能。

解析数字时,DOM 内部存储为以下类型之一:

类型描述
unsigned32 位无符号整数
int32 位有符号整数
uint64_t64 位无符号整数
int64_t64 位有符号整数
double64 位双精度浮点数

查询数字时,可以检查是否可提取为目标类型:

检查提取方式
bool IsNumber()N/A
bool IsUint()unsigned GetUint()
bool IsInt()int GetInt()
bool IsUint64()uint64_t GetUint64()
bool IsInt64()int64_t GetInt64()
bool IsDouble()double GetDouble()

注意整数可被提取为多种类型而无需转换。例如,Value x 的值为 123,则 x.IsInt() == x.IsUint() == x.IsInt64() == x.IsUint64() == true。但若 Value y 为 -3000000000,则仅 x.IsInt64() == true

提取数字时,GetDouble() 会将内部整数表示转换为 doubleintunsigned 可以安全转换为 double,但 int64_tuint64_t 可能会丢失精度(因为 double 仅有 52 位尾数)。

查询字符串

除了 GetString()Value 还提供 GetStringLength()。原因如下:

根据 RFC 4627,JSON 字符串可以包含 Unicode 字符 U+0000(JSON 中表示为 "\u0000")。问题是 C/C++ 通常使用 null 结尾字符串,将 \0 视为终止符。

为符合 RFC 4627,Merak 支持包含 U+0000 的字符串。处理此类字符串时,应使用 GetStringLength() 获取正确长度。

例如,将以下 JSON 解析到 Document d

{ "s" :  "a\u0000b" }

"a\u0000b" 的正确长度是 3,但 strlen() 返回 1。

GetStringLength() 还能提高性能,因为你可能需要调用 strlen() 来分配缓冲区。

此外,std::string 支持以下构造函数:

string(const char* s, size_t count);

该构造函数接受字符串长度参数,可存储空字符,通常性能更佳。

比较两个值

可以使用 ==!= 比较两个 Value。当且仅当类型和内容完全相同,两者才被认为相等。你也可以将 Value 与其对应的原生类型比较。例如:

if (document["hello"] == document["n"]) /*...*/;    // 比较两个值
if (document["hello"] == "world") /*...*/; // 与字符串字面量比较
if (document["i"] != 123) /*...*/; // 与整数比较
if (document["pi"] != 3.14) /*...*/; // 与 double 比较

数组/对象按元素/成员顺序进行比较。只有整个子树完全相同,它们才相等。

注意:如果对象包含重复的成员名,比较任何对象时都会返回 false

创建/修改值

创建值有多种方式。创建或修改 DOM 树后,可以使用 Writer 将其保存回 JSON。

修改值类型

默认构造的 ValueDocument 类型为 Null。可以调用 SetXXX() 或使用赋值运算符改变类型:

Document d; // Null
d.SetObject();

Value v; // Null
v.SetInt(10);
v = 10; // 简写(等价于上行)

重载构造函数

部分类型有重载构造函数:

Value b(true);    // Value(bool)
Value i(-123); // Value(int)
Value u(123u); // Value(unsigned)
Value d(1.5); // Value(double)

创建空 Object 或 Array,可在默认构造后调用 SetObject()/SetArray(),或直接用 Value(Type)

Value o(kObjectType);
Value a(kArrayType);

移动语义

Merak 的一个特殊设计是:Value 赋值不复制源值,而是 移动 源值到目标值。例如:

Value a(123);
Value b(456);
b = a; // a 变为 Null,b 变为 123

移动语义 1

为什么?优势是 性能。固定大小类型(Number、True、False、Null)复制快且简单,但可变大小类型(String、Array、Object)复制开销大。尤其是临时对象的创建和复制。

例如使用普通复制语义:

Value o(kObjectType);
{
Value contacts(kArrayType);
// 向 contacts 添加元素
o.AddMember("contacts", contacts, d.GetAllocator()); // 深拷贝 contacts
// contacts 被析构
}

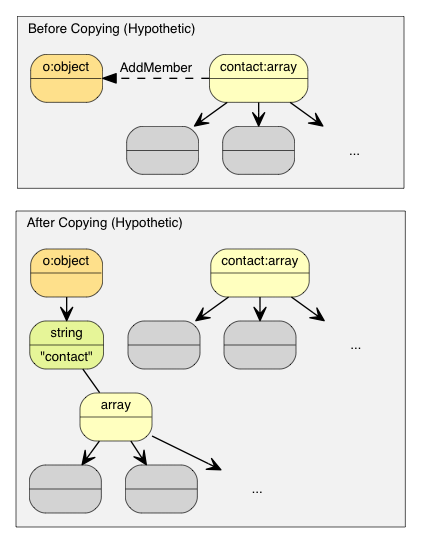

移动语义 2

这里 o 需要分配与 contacts 相同大小的缓冲区、深拷贝,然后析构 contacts。内存分配/释放和拷贝浪费资源。

Merak 为了简单和快速,选择 移动语义。类似 std::auto_ptr 的所有权转移:仅需析构原 Value、memcpy() 源值到目标、将源值置为 Null。

使用移动语义,例子变为:

Value o(kObjectType);
{
Value contacts(kArrayType);
// 添加元素
o.AddMember("contacts", contacts, d.GetAllocator()); // 仅 memcpy() 16 字节
// contacts 变为 Null,析构开销极低
}

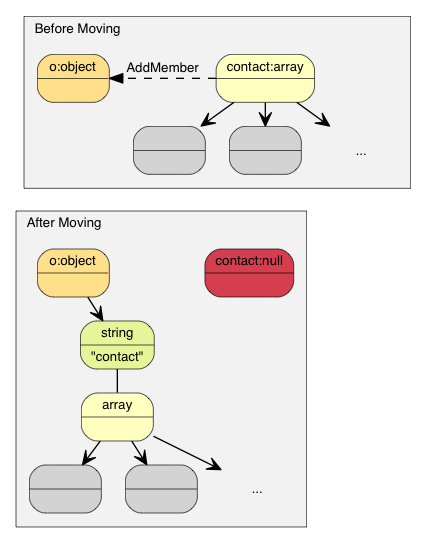

移动语义 3

C++11 中叫做移动赋值运算符。Merak 支持 C++03,因此在赋值、AddMember()PushBack() 等修改操作中也使用移动语义。

移动语义与临时值

构造临时 Value 并传给“移动”函数时(如 PushBack()AddMember()),临时对象不能转换为普通引用,需要使用 Move()

Value a(kArrayType);
Document::AllocatorType& allocator = document.GetAllocator();
// a.PushBack(Value(42), allocator); // 不可编译
a.PushBack(Value().SetInt(42), allocator); // 流式 API
a.PushBack(Value(42).Move(), allocator); // 等价

创建字符串

Merak 提供两种字符串存储策略:

  1. copy-string:分配缓冲区并复制源数据。
  2. const-string:直接存储指针。

copy-string 总是安全的,因为拥有数据副本。const-string 适用于字符串字面量或 in-situ 解析。

操作可能分配内存时,需要传入分配器实例。示例:

Document document;
Value author;
char buffer[10];
int len = sprintf(buffer, "%s %s", "Milo", "Yip");
author.SetString(buffer, len, document.GetAllocator());
memset(buffer, 0, sizeof(buffer));
// author.GetString() 仍然是 "Milo Yip"

对于字符串字面量或安全生命周期的字符串,可使用 const-string API:

Value s;
s.SetString("merak");
s = "merak"; // 简写

若是指针,需用 StringRef 表示安全:

const char * cstr = getenv("USER");
size_t cstr_len = ...;
Value s;
s.SetString(StringRef(cstr)); // 假设生命周期安全
s = StringRef(cstr); // 简写
s.SetString(StringRef(cstr, cstr_len));// 处理空字符
s = StringRef(cstr, cstr_len); // 简写

修改数组

Array 提供类似 std::vector 的接口:

  • Clear()
  • Reserve(SizeType, Allocator&)
  • Value& PushBack(Value&, Allocator&)
  • template <typename T> Value& PushBack(T, Allocator&)
  • Value& PopBack()
  • ValueIterator Erase(ConstValueIterator pos)
  • ValueIterator Erase(ConstValueIterator first, ConstValueIterator last)

示例:

Value a(kArrayType);
Document::AllocatorType& allocator = document.GetAllocator();

for (int i = 5; i <= 10; i++)
a.PushBack(i, allocator); // 可能 realloc

a.PushBack("Lua", allocator).PushBack("Mio", allocator); // 流式接口

非 constant 字符串或生命周期不足的字符串,需要 copy-string API:

contact.PushBack(Value("copy", document.GetAllocator()).Move(),
document.GetAllocator());

Value val("key", document.GetAllocator());
contact.PushBack(val, document.GetAllocator());

修改对象

对象是键值对集合(键必须是字符串)。增加成员:

  • Value& AddMember(Value&, Value&, Allocator&)
  • Value& AddMember(StringRefType, Value&, Allocator&)
  • template <typename T> Value& AddMember(StringRefType, T value, Allocator&)

示例:

Value contact(kObject);
contact.AddMember("name", "Milo", document.GetAllocator());
contact.AddMember("married", true, document.GetAllocator());

非 constant 键名或生命周期不足的字符串,用 copy-string API:

contact.AddMember(Value("copy", document.GetAllocator()).Move(),
Value().Move(),
document.GetAllocator());

Value key("key", document.GetAllocator());
Value val(42);
contact.AddMember(key, val, document.GetAllocator());

删除成员:

  • bool RemoveMember(const Ch* name):按名字(线性时间)
  • bool RemoveMember(const Value& name):按 Value 名称
  • MemberIterator RemoveMember(MemberIterator):按迭代器(常数时间,可能改变顺序)
  • MemberIterator EraseMember(MemberIterator):按迭代器,保留顺序(线性时间)
  • MemberIterator EraseMember(MemberIterator first, MemberIterator last):移除范围,保留顺序(线性时间)

RemoveMember(MemberIterator) 使用“移动最后一个”技术,实现常数时间。

深拷贝值

拷贝 DOM 树使用构造函数(带分配器)或 CopyFrom()

Document d;
Document::AllocatorType& a = d.GetAllocator();
Value v1("foo");

Value v2(v1, a); // 克隆
assert(v1.IsString());

d.SetArray().PushBack(v1, a).PushBack(v2, a);
assert(v1.IsNull() && v2.IsNull()); // 已移动

v2.CopyFrom(d, a); // 深拷贝整个文档
v1.SetObject().AddMember("array", v2, a);
d.PushBack(v1, a);

交换值

Value a(123);
Value b("Hello");
a.Swap(b);
assert(a.IsString());
assert(b.IsInt());

交换操作是常数时间,无论 DOM 树多复杂。

接下来学习

本教程展示了如何查询和修改 DOM 树。Merak 还有其他重要概念:

  1. Streams:读写 JSON 的通道,可为内存或文件,也可自定义。
  2. Encodings:流或内存的字符编码,支持 Unicode 转换与验证。
  3. DOM 高级功能:就地解析、额外解析选项等(见 DOM)。
  4. SAX:Merak 的解析/生成基础,使用 Reader/Writer 构建高性能应用,也可使用 PrettyWriter 美化输出。
  5. Performance:内部与第三方性能测试。
  6. Internals:Merak 内部设计与技术。

可参考 FAQ、API 文档、示例及单元测试。
