Overlay ports

Usually, kmpkg ports are obtained from registries. It is very likely that most of the ports you install come from the official kmpkg registry at https://github.com/kumose/kmpkg. kmpkg lets you install ports available to you via the file system, we call these ports, overlay ports.

An overlay port can act as a drop-in replacement for an existing port or as a new port that is otherwise not available in a registry. While resolving package names, overlay ports take priority.

Overlay ports are evaluated in the following order:

  • The directory specified in the command-line via --overlay-ports, or named subdirectories if that directory has no CONTROL or kmpkg.json file.
  • The directory specified in a kmpkg-configuration.json file via overlay-ports, or named subdirectories if that directory has no CONTROL or kmpkg.json file.
  • The directory specified by KMPKG_OVERLAY_PORTS environment variable entries, or named subdirectories if that directory has no CONTROL or kmpkg.json file.

When resolving port names, the first location that contains a matching overlay port is selected.

Using an overlay port​

If an overlay port is specified, first, kmpkg attempts to load that directory as a port. If that succeeds, the directory itself is itself treated as a port, and the name of the overlay is derived from the CONTROL or kmpkg.json file. Otherwise, subdirectories with the overlay port name are considered.

Valid ports contain portfile.cmake, and either kmpkg.json or CONTROL.

For example, consider the following directory structure:

  • x/kmpkg.json, the "name" field is set to "a".
  • x/portfile.cmake, the associated build instructions for a.
  • x/b/kmpkg.json, the "name" field is set to "b".
  • x/b/portfile.cmake, the associated build instructions for b.
  • y/c/kmpkg.json, the "name" field is set to "c".
  • y/c/portfile.cmake, the associated build instructions for c.
  • y/d/kmpkg.json, the "name" field is set to "d".
  • y/d/portfile.cmake, the associated build instructions for d.

kmpkg will consider the following ports given the following settings:

  • --overlay-ports=x: There is one port in this overlay, a. The name is derived from kmpkg.json. The subdirectory b is not considered.
  • --overlay-ports=x/b: There is one port in this overlay, b. The name is derived from kmpkg.json.
  • --overlay-ports=y: There are two ports in this overlay, c and d. Their names are derived from the subdirectories of y, and the names declared in their kmpkg.json must match, or an error will be generated if kmpkg is asked to consider c or d.

You can add to the overlay port configuration in several ways:

  • Command-line: Add one or more --overlay-ports=<directory> options to the command-line.
  • Manifest: Populate the "overlay-ports" array in kmpkg-configuration.json.
  • Environmental variable: Set KMPKG_OVERLAY_PORTS to a path character delimited list.

Example: Overlay Ports Example​

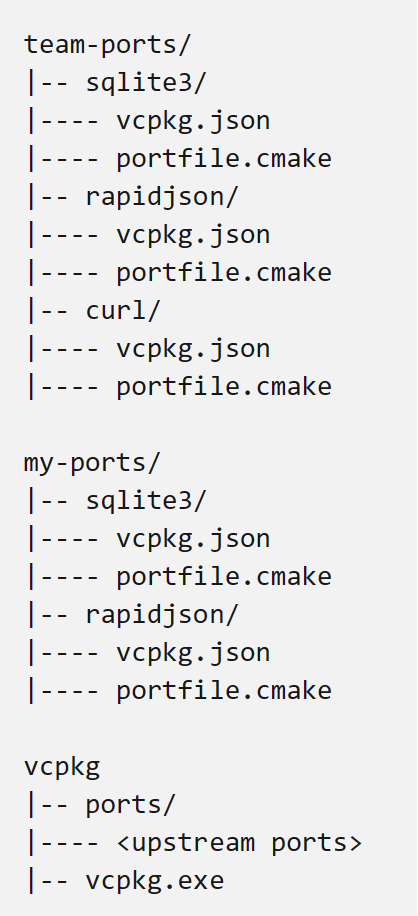

Given this directory structure:

Run:

kmpkg install sqlite3 --overlay-ports=my-ports --overlay-ports=team-ports

To install:

  • sqlite3 from my-ports

Run:

kmpkg install sqlite3 rapidjson curl \
    --overlay-ports=my-ports/rapidjson \
    --overlay-ports=kmpkg/ports/curl \
    --overlay-ports=team-ports

To install:

  • sqlite3 from team-ports
  • rapidjson from my-ports
  • curl from kmpkg/ports

Example: Using overlay ports to use a system package manager dependency​

To use a system package manager dependency over a kmpkg one, refer to our blog post.
